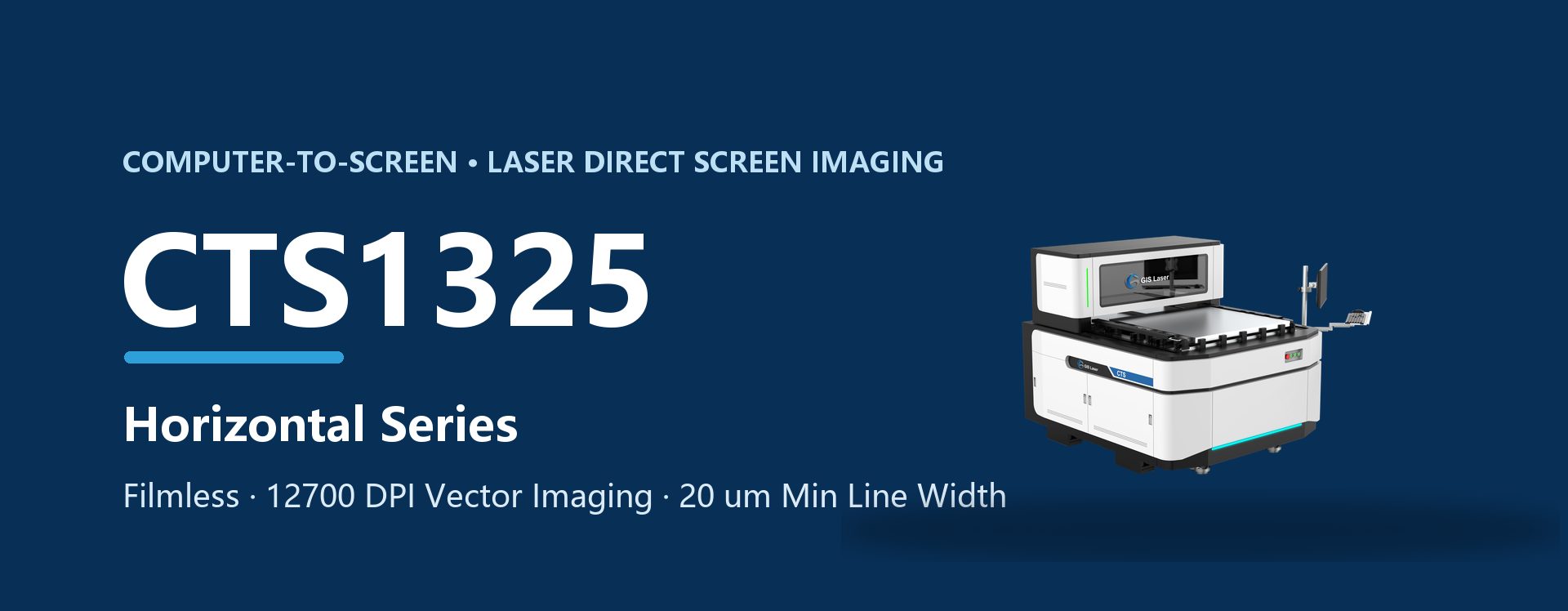

COMPUTER-TO-SCREEN

CTS1325

Horizontal Series

High-rigidity steel structure keeps large frames stable, covering screen printing from 600x800 mm up to 2500x4200 mm.

12700 DPI · PDF Vector Imaging20 μm Line · 3% Halftone DotEOM up to 900 μm

1300x2500 mm

Max Frame Size

400x400 mm

Min Frame Size

1200x2400 mm

Exposure Area

3310x1900x1400 mm

Dimensions

Key Features

KEY FEATURES

Steel Structure

Integrated high-strength steel chassis for rigidity and vibration resistance

HIWIN Rails

Premium HIWIN linear guides for smooth, precise XY motion

Water Cooling

Integrated water-cooling system for stable laser performance

DMD DLP Imaging

TI DMD digital micro-mirror device for ultra-sharp dot imaging

TECHNICAL SPECIFICATIONS

Item	Value
Model	CTS1325
Max Frame	1300x2500 mm
Min Frame	400x400 mm
Exposure Area	1200x2400 mm
Dimensions (WxDxH)	3310x1900x1400 mm
Weight	2300 kg
Imaging System	DMD DLP Digital Imaging Technology
Emulsion Thickness (EOM)	10 - 900 um (SBQ-specified emulsion, incl. mesh)
Exposure Time	120 - 240 sec/m² (@ #350 yellow mesh)
Image Resolution	1270 / 2540 / 5080 / 12700 DPI (PDF vector)
Halftone Frequency	Up to 133 - 200 LPI (200 LPI @ 2540 DPI)
Focus System	Dynamic Auto-Focus (real-time Z-axis)
File Formats	1-bit TIFF, Gerber, PDF Vector
Laser Type	UV Laser, wavelength 405 +/- 5 nm
Laser Power	20W / 25W / 30W (optional)
Frame Thickness	25 - 40 mm (custom available)
Registration Pins	M&R Tri-loc / ROQ pin / MHM pin
Work Environment	Yellow-light room; 22 +/- 2 degC
Power Supply	Single-phase 220V, 50/60 Hz, 4 kW (varies by model)
Compressed Air	0.5 MPa
