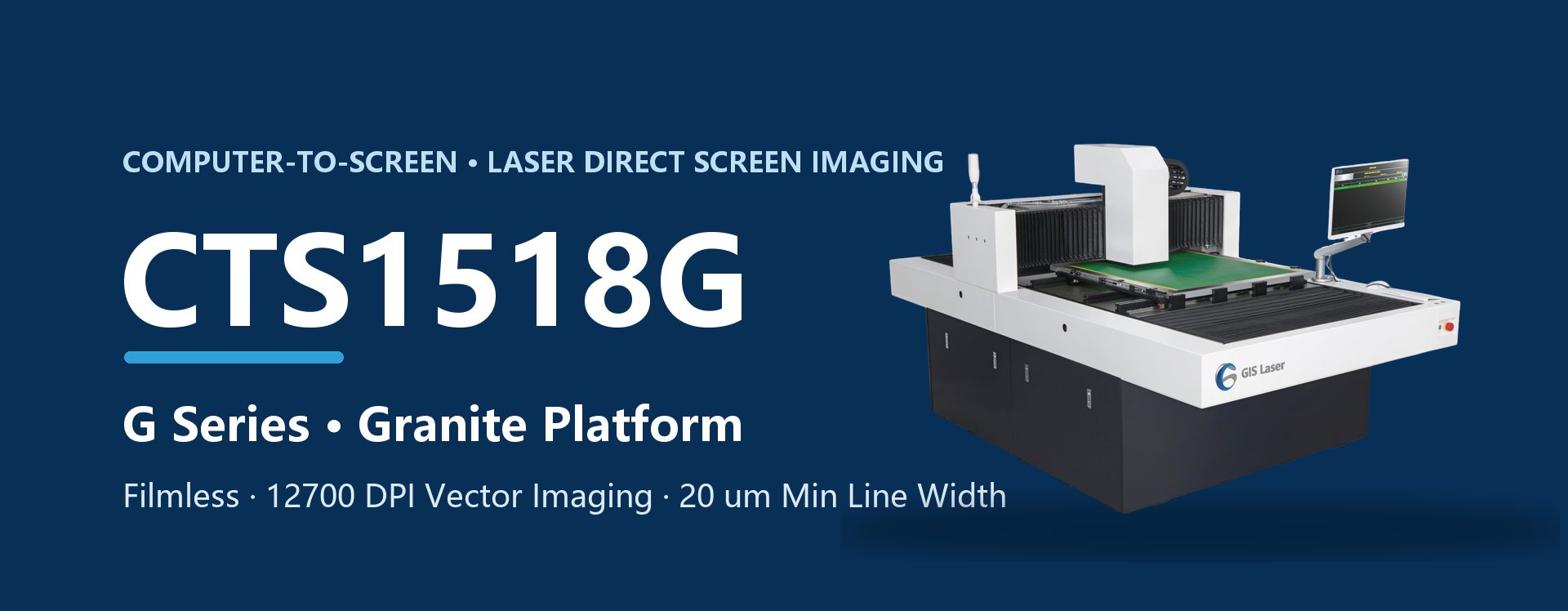

COMPUTER-TO-SCREEN

CTS1518G

G Series · Granite Platform

Granite base with linear motor and Renishaw encoder delivers sub-micron positioning — the highest-precision CTS solution in its class.

12700 DPI · PDF Vector Imaging20 μm Line · 3% Halftone DotEOM up to 900 μm

1500x1800 mm

Max Frame Size

400x400 mm

Min Frame Size

1400x1700 mm

Exposure Area

3940x2000x1800 mm

Dimensions

Key Features

KEY FEATURES

Granite Base

Vibration-damping granite platform for ultimate dimensional stability

HIWIN SP Guides

Linear motor + Renishaw encoder for sub-micron positioning

Sub-Micron Accuracy

Dimensional error < 3/10,000 for precision repeatability

Dynamic Auto-Focus

Real-time Z-axis focus compensation across the full frame area

TECHNICAL SPECIFICATIONS

Item	Value
Model	CTS1518G
Max Frame	1500x1800 mm
Min Frame	400x400 mm
Exposure Area	1400x1700 mm
Dimensions (WxDxH)	3940x2000x1800 mm
Weight	2000 kg
Imaging System	DMD DLP Digital Imaging Technology
Emulsion Thickness (EOM)	10 - 900 um (SBQ-specified emulsion, incl. mesh)
Exposure Time	120 - 240 sec/m² (@ #350 yellow mesh)
Image Resolution	1270 / 2540 / 5080 / 12700 DPI (PDF vector)
Halftone Frequency	Up to 133 - 200 LPI (200 LPI @ 2540 DPI)
Focus System	Dynamic Auto-Focus (real-time Z-axis)
File Formats	1-bit TIFF, Gerber, PDF Vector
Laser Type	UV Laser, wavelength 405 +/- 5 nm
Laser Power	20W / 25W / 30W (optional)
Frame Thickness	25 - 40 mm (custom available)
Registration Pins	M&R Tri-loc / ROQ pin / MHM pin
Work Environment	Yellow-light room; 22 +/- 2 degC
Power Supply	Single-phase 220V, 50/60 Hz, 4 kW (varies by model)
Compressed Air	0.5 MPa
